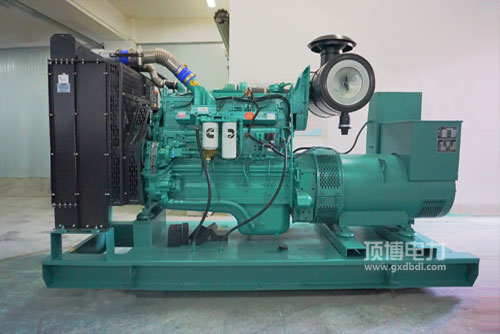

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用启思想燃料第三产业性好: 先进典型的燃料有效管理操作设备，特有的STC、ESTC 分级a有效管理操作设备，特别的设计构思的火塞最上层丙烷发动机燃燒室，高压力喷洒燃料，能够多方面吸雾，丙烷燃燒能够多方面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电站用起主观因素瞬态功效不错: 极致的起主观因素整体化设计，互相配合康明斯特有的EFC体统，管理精确性强，为了响应日期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯风能发电用起行为升耗油率高: 整体风格开发紧奏型.造型安排适度，行驶能保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷仪器 QSNT. QSK19. QSK38. QSK50足够国非路面三、的阶段及亚洲Tier2. Tier 3排放出标准想要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件可要性好， 热车机行驶及检修清洗社区便利店，制造费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电率区域 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形壮的尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净重量 Dry Weight   940kg

224-310KW康明斯发电机组用热车机的亮点：质量小， 进行压缩变高， 防雨百叶窗空气的供暖，不易开启，手机移动车载多媒体电压的省心。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机规格型号	所用输出(kW)Prime Power	紧急输出功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
